Tern Vektron Q9

Regular price: $5,990.00
Clearance price: $4,349.90

includes 15% GST

Description

The Vektron is a best-in-class electric bike that folds in 10 seconds to go on trains, in cars, and under desks. Shorten distances and flatten the hills on your commute, or put a couple of Vektrons in the trunk of your car on your next trip, so you can explore further.

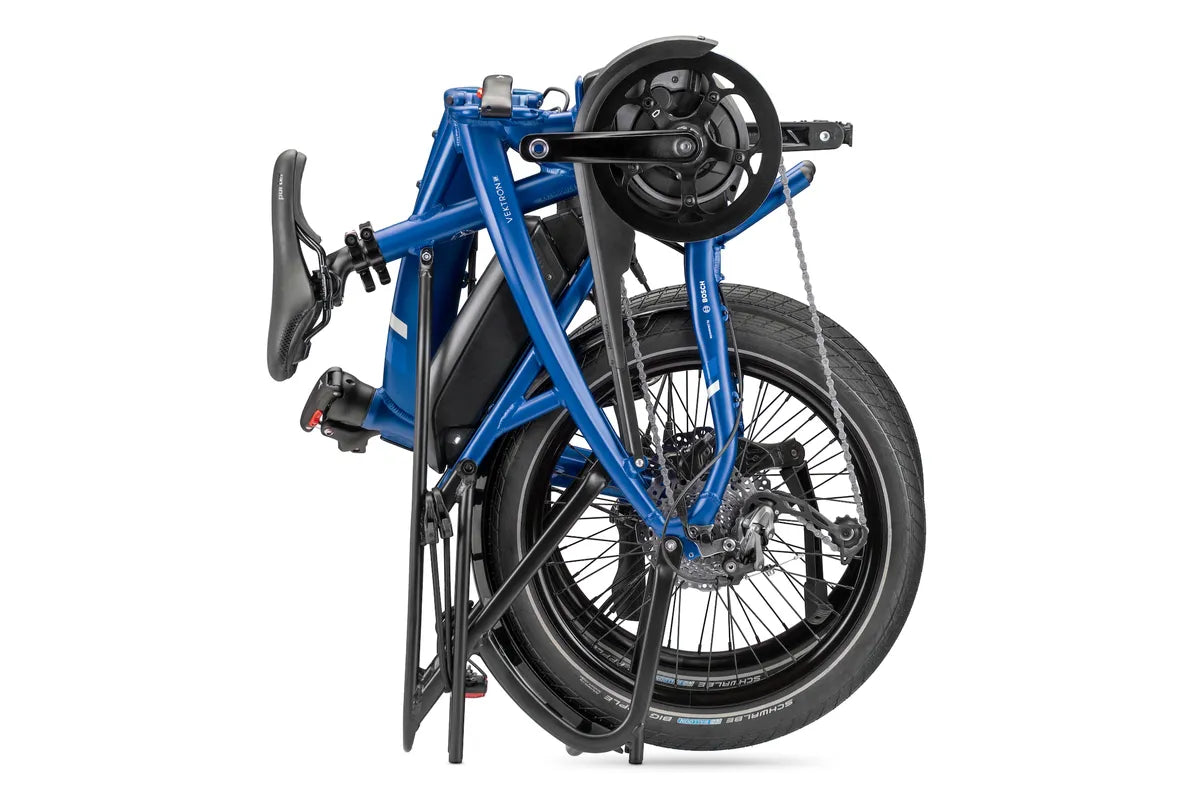

Once you fold your Vektron, it’s easy to roll it around. The new frame design also lets you keep the bike in vertical position when folded, so stopping and going is easier than ever.

The Vektron has a low-step frame design and resizes in seconds—no tools required—to fit riders between 147 and 195 cm (4’10” – 6’5”), so you can share the bike with anyone in your family.

SPECIFICATIONS

GENERAL INFO
SPEEDS:
1 x 9
WEIGHT:
21.9 kg (48.3 lb)
GEAR INCHES:
33" - 97" (2.65 - 7.72 m)
FOLDING SIZE:
41 × 86 × 68 cm (16.1 × 33.9 × 26.8 in)
FOLDING TIME:
10 sec
FRAME SIZES:
One size
DISTANCE: SEATPOST TO HANDLEBAR:
62 - 69 cm (24.4 - 27.2 in)
DISTANCE: SADDLE TO PEDAL:
67 - 110 cm (26.4 - 43.3 in)
SUGGESTED RIDER HEIGHT:
147 - 195 cm (57.9 - 76.8 in)
MAX GROSS VEHICLE WEIGHT:
125 kg (275.6 lb)
MAX RIDER WEIGHT:
105 kg (231.5 lb)
FRAME
FRAME:
Tern Vektron, hydroformed 7005-AL, OCL+ joint, 3 patented technologies
FORK:
Tern Tarsus, 6061-Al, hydroformed
COCKPIT
HANDLEPOST:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
STEM:
Tern Andros, adjustable, forged construction, patented technology
HEADSET:
Tern Flux, cartridge bearings, Physis integrated
HANDLEBAR:
Flat bar, 6061-AL, Tern Andros adapted
GRIPS/BAR TAPE:
Velo ergonomic, lock-on
SADDLE:
Tern Porter, patented GripPad design
SEATPOST:
Tern Telescope, 34.9/30.9 mm, 2014-AL
SEATPOST CLAMP:
Tern Collar, 6061-AL, 2pc
BRAKES
FRONT BRAKE:
Shimano, hydraulic disc
REAR BRAKE:
Shimano, hydraulic disc
BRAKE LEVERS:
Shimano, hydraulic disc
BRAKE CABLE & HOUSING:
Shimano, hydraulic disc
WHEELS
FRONT HUB:
Shimano disc
REAR HUB:
Shimano disc
SPOKES AND NIPPLES:
Stainless steel
RIMS:
Kinetix Comp, for disc
TIRES:
Schwalbe Big Apple, 55-406, puncture protection, Reflex
TRANSMISSION
SHIFTER(S):
Shimano Alivio, 1 x 9 spd, trigger
REAR DERAILLEUR:
Shimano Alivio Shadow
CRANKSET:
Vektron custom, forged 6061-AL crankarm
CASSETTE/FREEWHEEL:
Shimano 11-32T, 9 spd
BOTTOM BRACKET:
Motor integrated
CHAIN:
9 spd, DHT for eBike, GST corrosion resistant coating
PEDALS:
MKS EZY
SHIFTER CABLE & HOUSING:
Jagwire LEX-SL, slick treatment, alloy ferrules
E-SYSTEM
MOTOR:
Bosch Active Line Plus, 270% Assist, 50 Nm Torque, max speed 20 mph / 32kph
BATTERY:
Bosch PowerPack 400 Wh
DISPLAY:
Bosch Purion, 4 mode selectable, walk assist
RANGE:
400 Wh: 55 -110 km (35-70 mi)
CHARGER:
220V, 4A
BELLS & WHISTLES
BELL:
Aluminum
CHAINGUARD:
SKS Chainblade
KICKSTAND:
URSUS, rear mount
CLIP SYSTEM:
Magnetix 3.0
LUGGAGE SOCKET:
Yes
FRONT LIGHT:
Tern Valo Direct, 190 lumens
REAR LIGHT:
Herrmans H-Trace, for eBike
FENDERS:
SplashGuard, stainless hardware
RACK(S):
Atlas V Rack™, integrated 8 point mounting; Max load weight: 27 kg (60 lb)

*Note: These are our standard model specifications. The bike's weight and folded dimension may not include racks and fenders. The specifications for your country may differ slightly. We do our best to ensure that the specifications listed here accurately reflect the exact parts found on our production bikes. However, component changes do occur for various reasons and there may be brief delays on site updates. We reserve the right to make component changes without prior notification, which may cause discrepancies with the information listed on the web.
