Teewing Turbo Force XT
- Regular price
- $11,490.00 Call 03 399 3718 to order.
- Clearance price
- $11,490.00
Enquiry Form

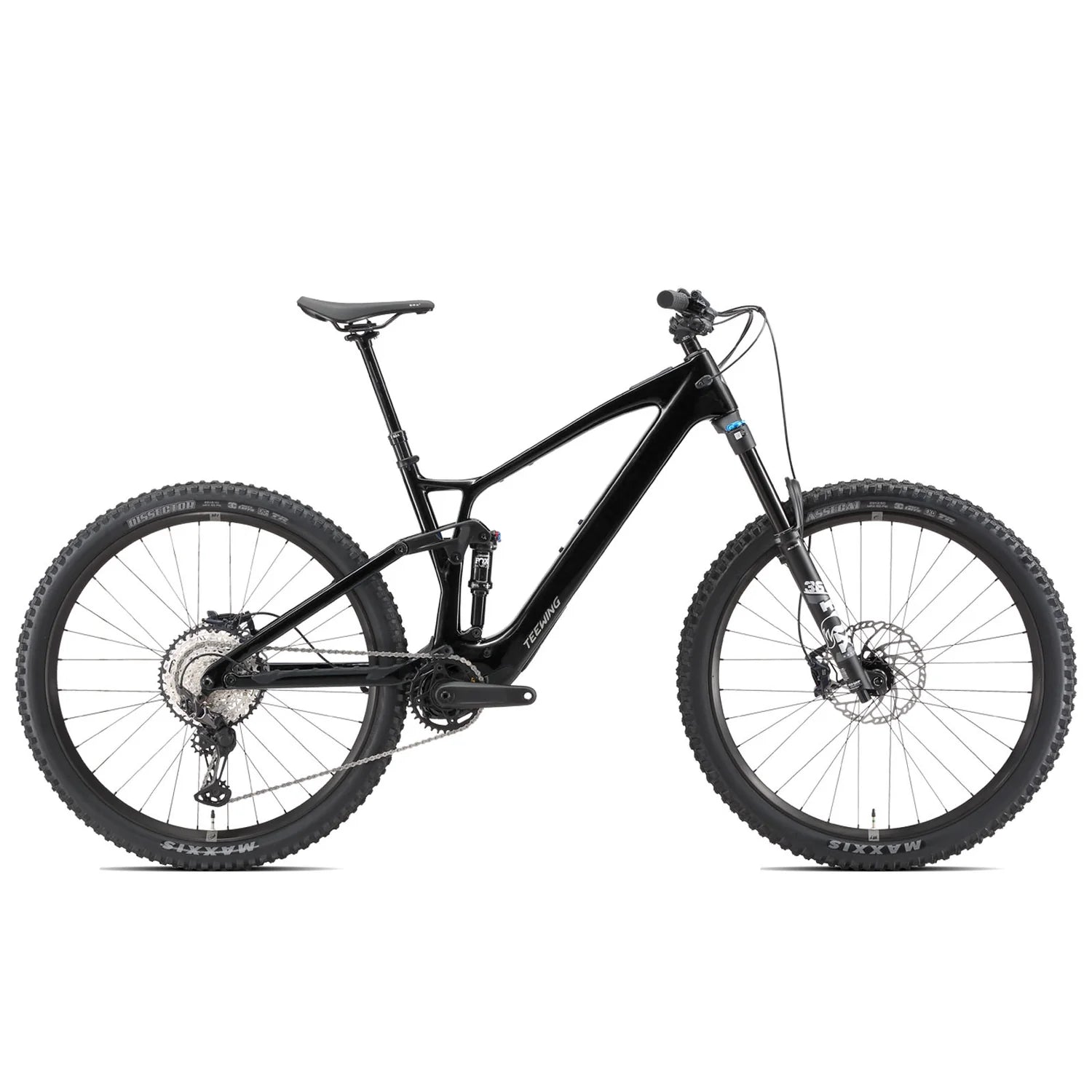

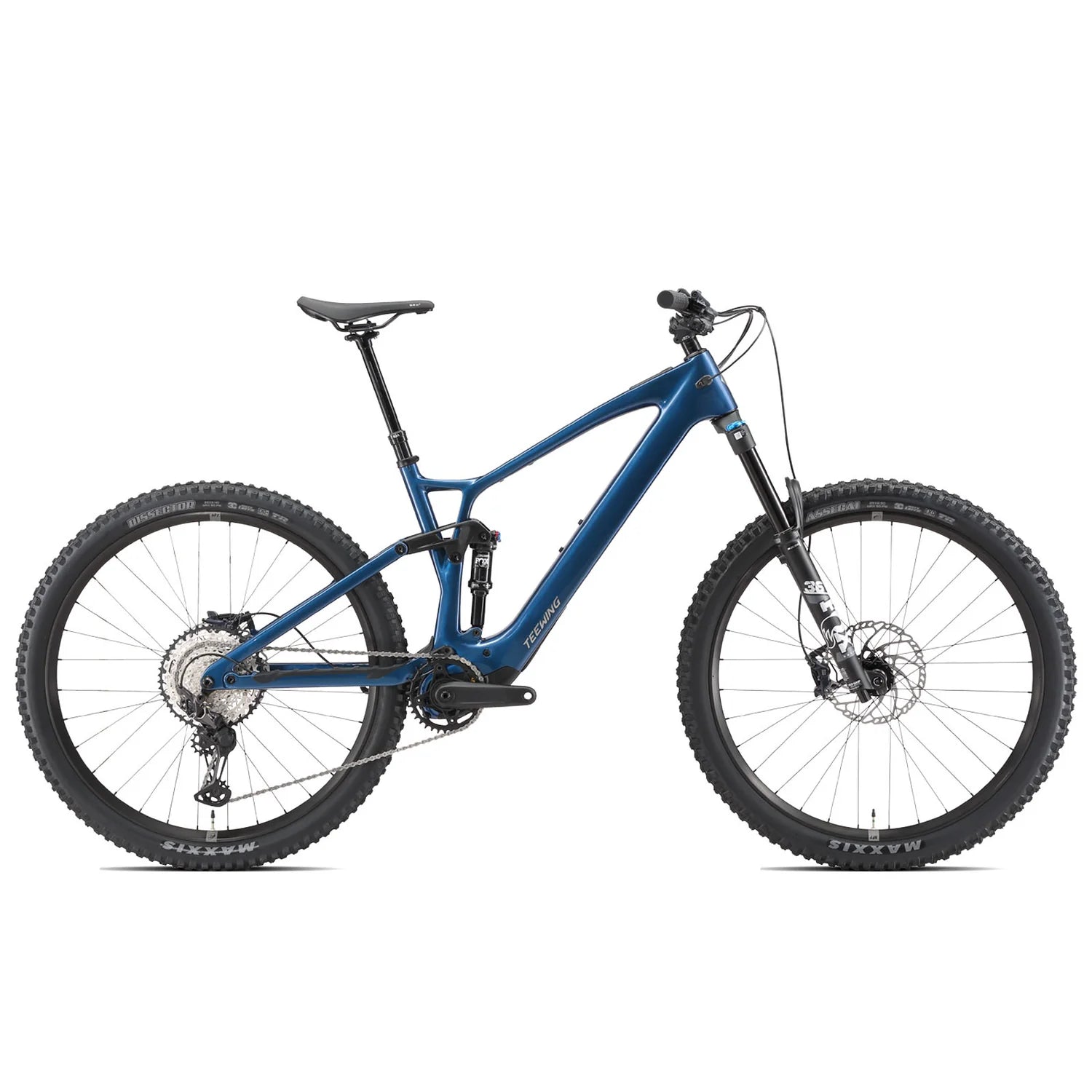

The 2026 Teewing Turbo Force XT is built for riders who want a fast, capable e‑mountain bike that thrives everywhere from flowing singletrack to demanding all‑mountain terrain.
The new Avinox M2S motor system is quieter, stronger and smoother with enhanced responsiveness that gives riders the confidence to push harder both uphill and down! The full carbon frame keeps the ride light, stiff, and agile, while a Fox 36 Rhythm fork with 160 mm of travel and Fox Float Rhythm rear shock provide confident, balanced suspension for technical climbs and rough descents.
A proven Shimano XT 12‑speed drivetrain delivers precise shifting under load, and the integrated 800 Wh battery ensures the range to keep exploring. Responsive, efficient, and trail‑hungry, the Turbo Force XT is your do‑it‑all eMTB for big days and varied terrain.

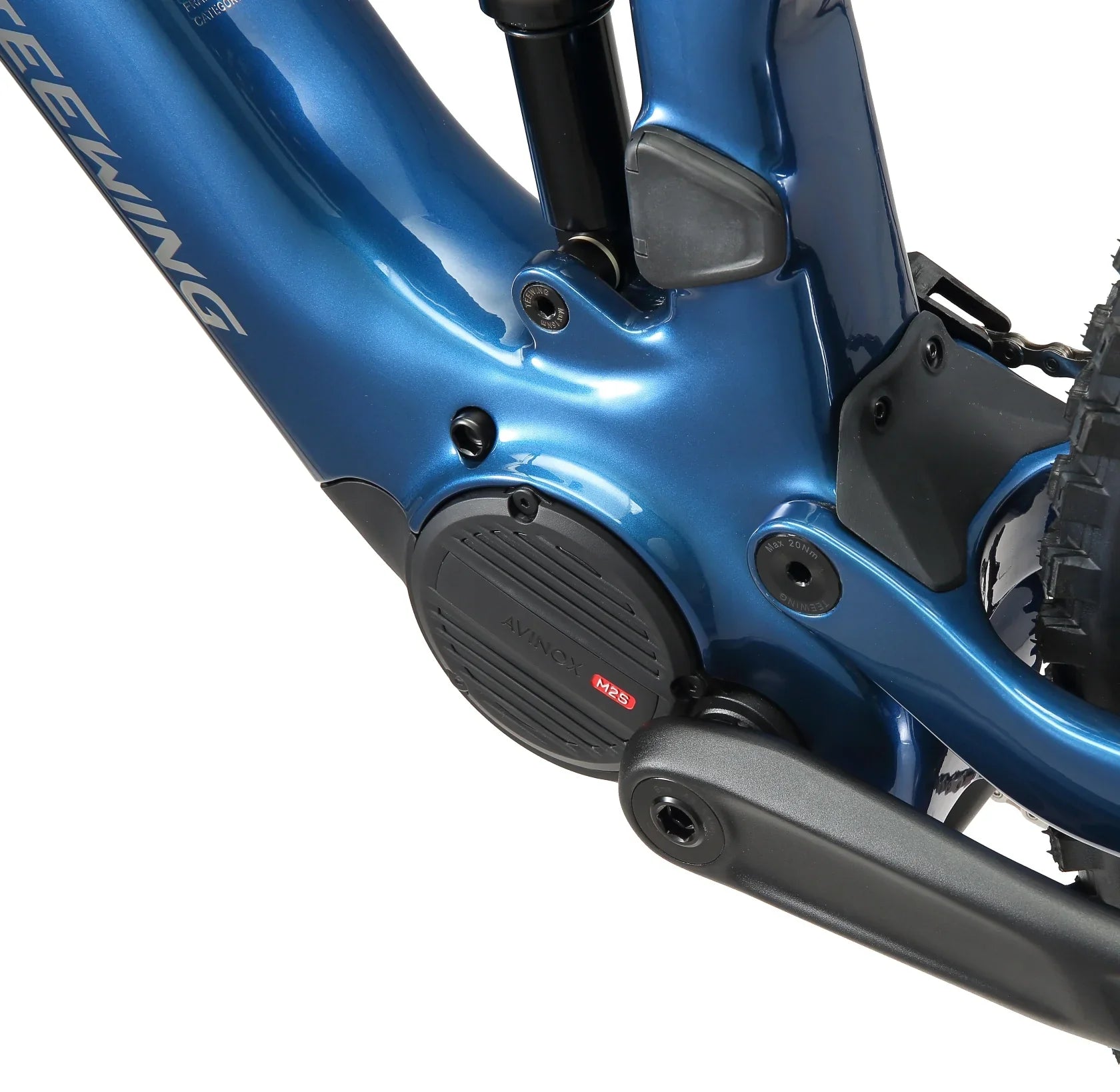

Avinox M2S Motor

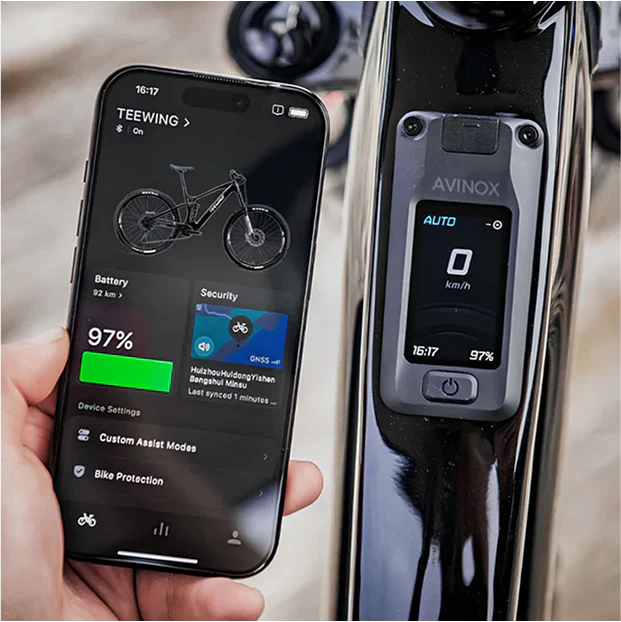

The Avinox M2S drive system represents a major leap in power, refinement, and ride feel. Weighing just 2.6 kg, the compact motor delivers a class‑leading 130 Nm of torque, with up to 150 Nm in Boost mode, making steep climbs and technical terrain feel effortless. Reduced pedal drag and minimised motor noise create a quieter, smoother, and more natural riding experience. Multiple assist modes—Auto, Eco, Trail, Turbo, and Boost—allow riders to adapt instantly to changing trail conditions. Paired with an integrated 800 Wh battery producing up to 1300 W peak output, the system offers strong, consistent performance and impressive range. An integrated Avinox top‑tube touch display, weather‑sealed magnetic charge port, and 155 mm crank arms complete a highly refined and confidence‑inspiring drive system.
Lightweight, High-Capacity Battery
The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.
Optimised Frame Geometry
The Teewing Turbo Force XT e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.
| Model | Turbo Force XT (800Wh) |
|---|---|
| Frameset | |
| Frame | Teewing Turbo Force Carbon Frame |
| Fork | Fox 36 Rhythm 160mm - 25.36.A. 29in, Grip Sweep-Adj, Matte Blk, 15QRx110, 1.5 T 58HT, 44mm Rake |
| Rear Shock | Fox Float Rhythm, A, 2pos, Trunnion, Evol LV, 185, 55, 0.2ci Spacer, LCF, LRM, CML, PMS877 Silver/PMS10392 Dark Silver Logo |
| E-Bike System | |
| Motor | Avinox M2S Drive Unit: 130 Nm (159 Nm Boost) |
| Interface | Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides. |
| Battery | Avinox Integrated Battery: 800Wh |
| Charger | Avinox Charger: 4A/168W |
| Drivetrain | |
| Shifter | Shimano XT M8100, 12 speed |
| Rear Derailleur | Shimano XT M8100, long cage |
| Chainring | Prowheel FD04 BCD=104,11/128*36T,BED |
| Cassette | Shimano SLX M7100, 10-51, 12 speed |
| Chain | Shimano SLX CN-M7100, 120LINKS |
| Crankset | Teewing SL Crank 155mm |
| Brakes | |
| Caliper | Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper |
| Rotor | Shimano RT66, 6-bolt, 203mm |
| Wheels | |
| Rim | Formula - M7 Hybrid - Alloy, 29'', 30mm internal width, 32H, tubeless ready |
| Spokes | SAPIM E-Light J-bend |
| Front Hub | Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt |
| Rear Hub | Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T |
| Front Tire | Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR |
| Rear Tire | Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR |
| General Components | |

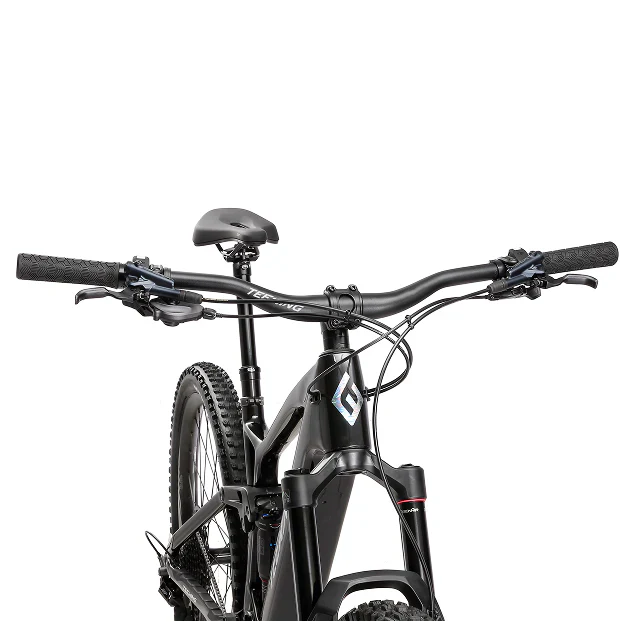

| Handlebar | Teewing Enduro AL7075-T6 Handlebar 35mm rise, 780mm wide 8-degree upsweep, 8-degree backsweep |
| Grips | VELO Enduro Grips |
| Stem | Teewing Enduro AL6061-T6 Length: 40mm Clamping diameter: 35mm |
| Saddle | Selle Royal SRX Plus |
| Seatpost | EXA 31.6 - S/M: 150mm L: 170mm XL: 190mm |
| Accessories | |
| User Manual | |
| Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25) | |
| Shock Pump | |

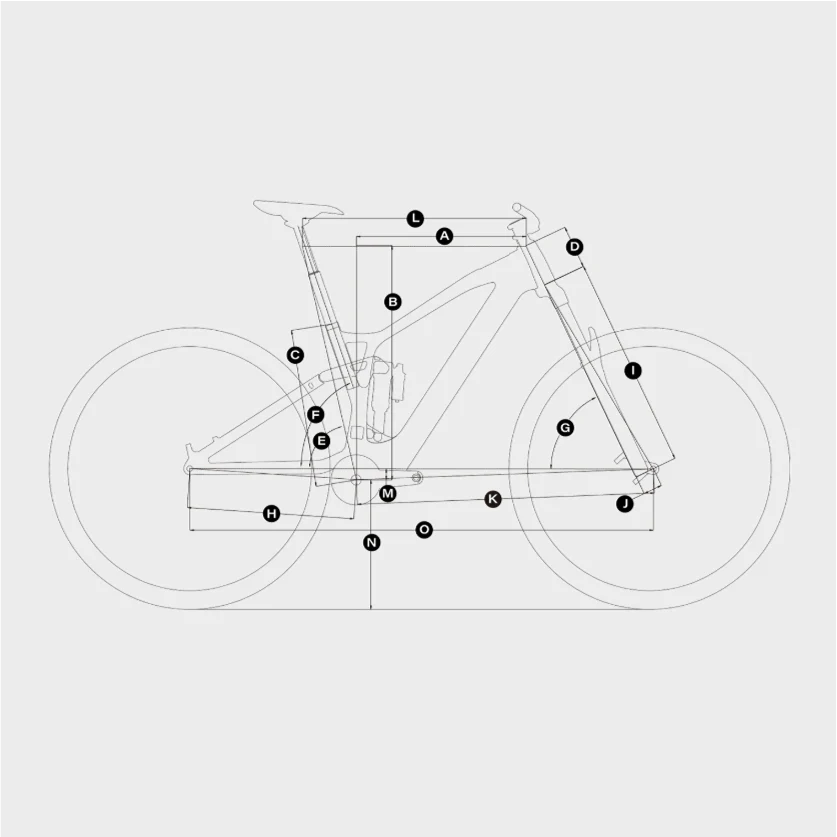

| Size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Reach | 430 | 453 | 476 | 500 |
| B | Stack | 620.3 | 629.3 | 636 | 642.8 |
| C | Seat-Tube Length | 390 | 420 | 450 | 480 |
| D | Head Tube Length | 105 | 115 | 122.5 | 130 |
| E | Seat Tube Angle | 77° | 77° | 77° | 77° |
| F | Actual Seat Tube Angle | 71° | 71° | 71° | 71° |
| G | Head Tube Angle | 64.5° | 64.5° | 64.5° | 64.5° |
| H | Chain Stay Length | 445 | 445 | 445 | 445 |
| I | Fork Length | 570 | 570 | 570 | 570 |
| J | Fork Rake / Offset | 44 | 44 | 44 | 44 |
| K | Front Center | 760.9 | 788.2 | 814.5 | 841.6 |
| L | Top Tube Length (Horizontal) | 573.2 | 598 | 623 | 648.5 |
| M | BB Drop | 30 | 30 | 30 | 30 |
| N | BB Height | 345 | 345 | 345 | 345 |
| O | Wheelbase | 1204.3 | 1231.6 | 1257.8 | 1285 |
