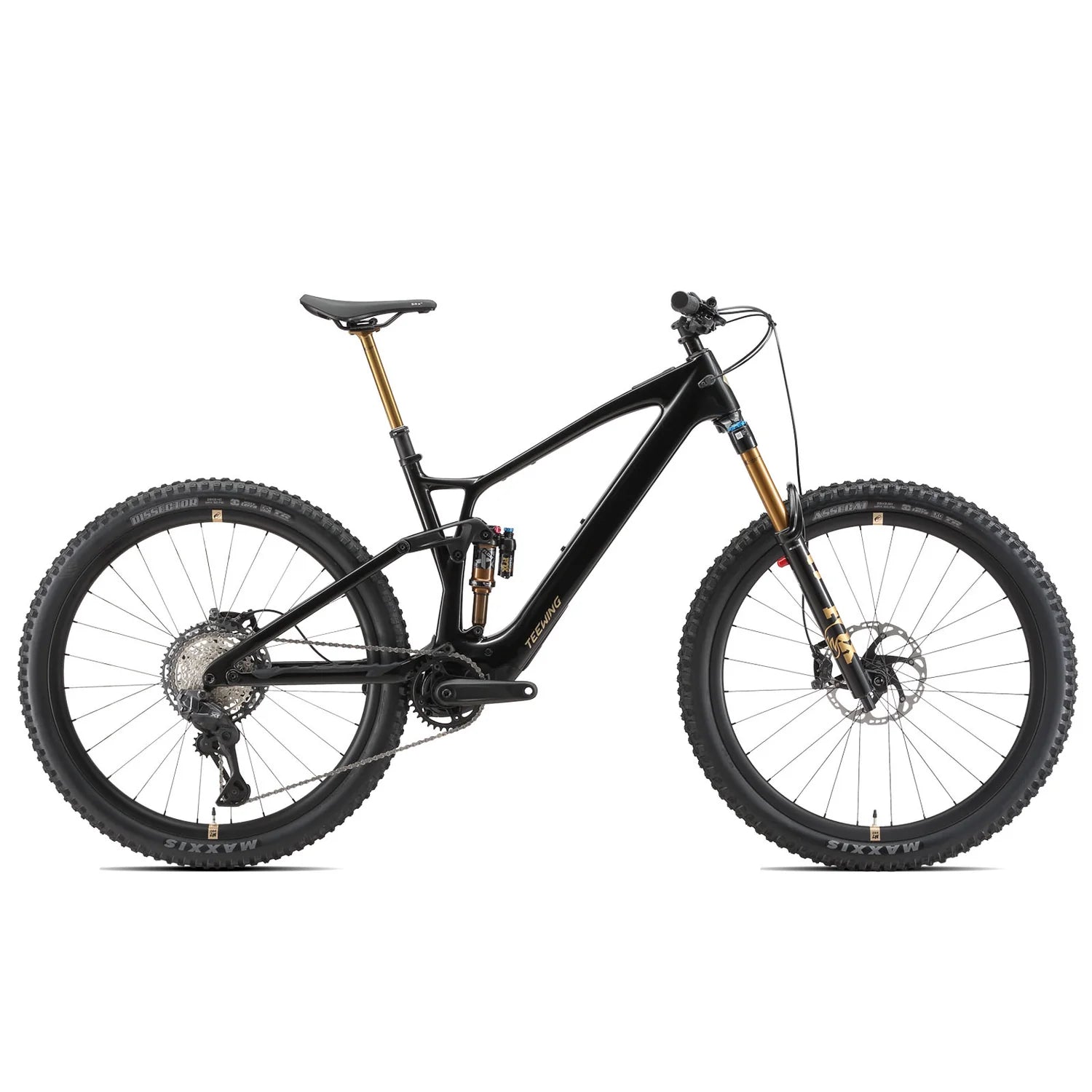

Teewing Turbo Force Pro
- Regular price
- $16,900.00 Call 03 399 3718 to order.
- Clearance price
- $16,900.00
Enquiry Form
The Turbo Force Pro builds on the responsive carbon chassis with upgraded FOX Factory suspension and the latest wireless drivetrain. Turbo Force Pro is tuned for higher speeds, steeper lines, and greater precision under load.
The new Avinox M2S motor system is quieter, stronger and smoother, with enhanced responsiveness that gives riders the confidence to push harder both climbing and descending. The full carbon frame keeps the ride light, stiff, and agile, while a Fox 36 Float Factory fork with 160mm of travel and Fox Float X Factory rear shock provides confident, balanced suspension for technical climbs and rough descents. A Shimano XT RD-M8250 SGS Di2 12-speed electronic derailleur delivers precise shifting under load, and the integrated 800Wh battery ensures the range to keep exploring.
Responsive, efficient, and trail-hungry, the Turbo Force Pro is your do-it-all eMTB for big days and varied terrain.

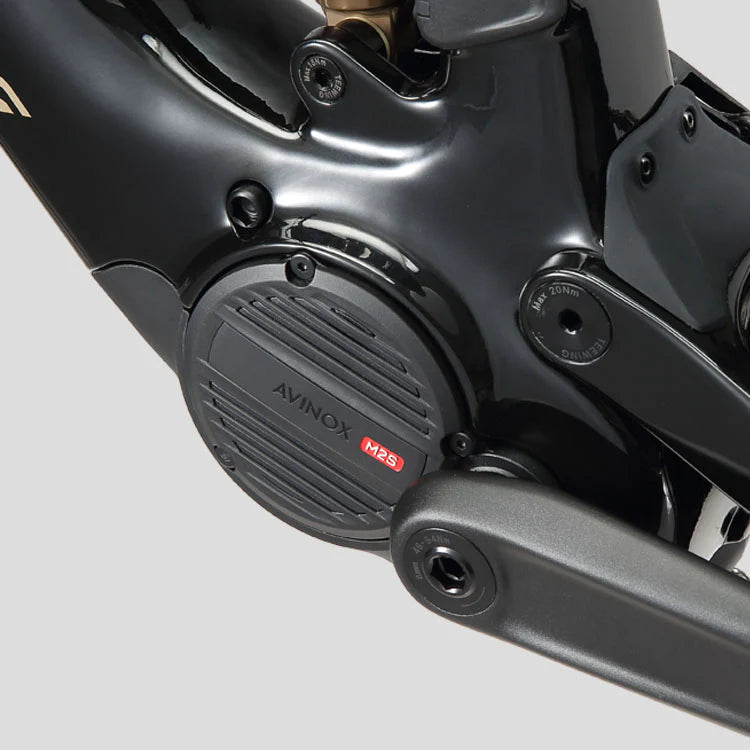

Avinox M2S Motor
The Avinox M2S drive system represents a major leap in power, refinement, and ride feel. Weighing just 2.6 kg, the compact motor delivers a class‑leading 130 Nm of torque, with up to 150 Nm in Boost mode, making steep climbs and technical terrain feel effortless. Reduced pedal drag and minimised motor noise create a quieter, smoother, and more natural riding experience. Multiple assist modes—Auto, Eco, Trail, Turbo, and Boost—allow riders to adapt instantly to changing trail conditions. Paired with an integrated 800 Wh battery producing up to 1300 W peak output, the system offers strong, consistent performance and impressive range. An integrated Avinox top‑tube touch display, weather‑sealed magnetic charge port, and 155 mm crank arms complete a highly refined and confidence‑inspiring drive system.

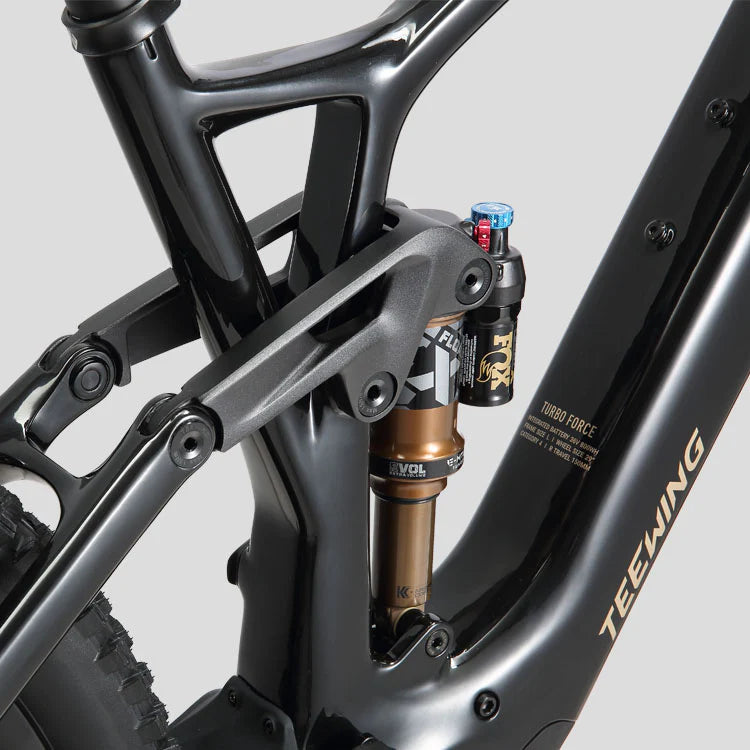

Advanced Four-Bar Linkage
A refined four-bar linkage provides:
- Active suspension under braking
- Consistent traction across varied surfaces
- Efficient power transfer while pedaling
The kinematic profile is tuned to balance sensitivity and support, ensuring predictable behavior across the full travel range.
Optimized Frame Geometry
Geometry that reflects modern trail and all-mountain demands:
- A stable front-end for confidence at speed
- A central riding position for efficient climbing and balance
- A predictable rear-end for, fast technical terrain
Lightweight, High-Capacity Battery
The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.
| Model | Turbo Force Pro (800Wh) |
|---|---|
| Frameset | |
| Frame | Teewing Turbo Force Carbon Frame, 150mm rear travel, 29" rear wheels, Cosmic Black |
| Fork | FOX 36 Float Factory, 29", 160mm Travel, GRIP X2 Damper, High/Low-Speed Compression & Rebound Adjustment, 44mm Offset, Boost 15x110mm, Tapered 1.5" Steerer |
| Rear Shock | FOX Float X Factory, 185x55mm, Trunnion Mount, EVOL LV Air Spring, 2-Position Adjustment, Advanced Compression & Rebound Tuning, 0.4ci Volume Spacer |
| E-Bike System | |
| Motor | Avinox M2S Drive Unit: 130 N·m (150 N·m Boost) |

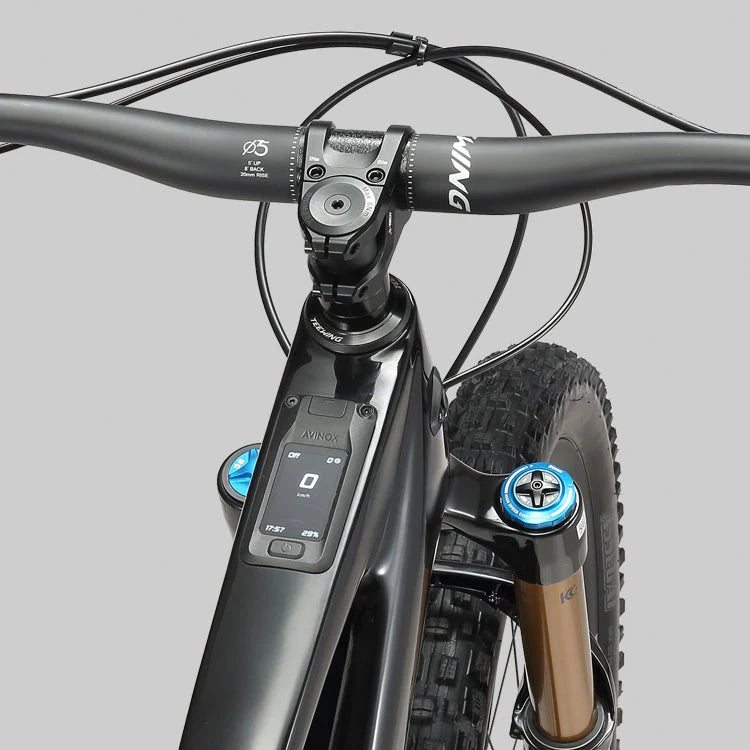

| Interface | Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides. |
| Battery | Avinox Integrated Battery: 800Wh |
| Charger | Avinox Fast Charger: 12A/508W |
| Drivetrain | |
| Shifter | Shimano XT SW-M6250 Di2, 12-speed |
| Rear Derailleur | Shimano XT RD-M8250 SGS Di2, 12-speed |
| Chainring | Shimano SM-CRE70-12-B, 36T, chain line 55mm, black |
| Cassette | Shimano XT M8200, 10-51T, 12-speed |
| Chain | Shimano SLX CN-M7100, 120 links |
| Crankset | Teewing SL Crank 155mm |
| Brakes | |
| Caliper | Shimano XT BR-M8220, hydraulic disc, 4-piston |
| Rotor | Shimano RT86, 6-bolt, 203mm |
| Wheels | |
| Rim | Formula M7 Pro Hybrid, Carbon Fiber, 29", 30mm internal width, 28H, tubeless compatible |
| Spokes | SAPIM E-Light straight pull |
| Front Hub | Aluminium alloy, 2 sealed cartridge bearings, 15x110mm thru-axle, 28H, straight pull, 6-bolt |
| Rear Hub | Aluminium alloy, 4 sealed cartridge bearings, 148x12mm thru-axle, 28H, straight pull, 6-bolt, 78T |
| Front Tire | Maxxis Assegai MaxxTerra 29x2.5" WT 3C EXO E-25 TLR |
| Rear Tire | Maxxis Dissector MaxxTerra 29x2.4" WT 3C EXO + E-25 TLR |
| General Components | |
| Handlebar | Teewing Enduro Carbon Handlebar, 20mm rise, 800mm wide, 5-degree upsweep, 8-degree backsweep |
| Grips | VELO Enduro Grips |
| Stem | Teewing Enduro 7075 CNC, Length: 40mm, Clamping diameter: 35mm |
| Saddle | Selle Royal SRX Plus |
| Seatpost | Fox Transfer Kashima 31.6mm, remote adjustment - M: 150mm / L: 180mm / XL: 210mm |
| Accessories | |
| User Manual | |
| Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25) | |
| Shock Pump | |
| Net Weight (with battery) - 21kg (46.3lbs) | |
