Description

Frame Design

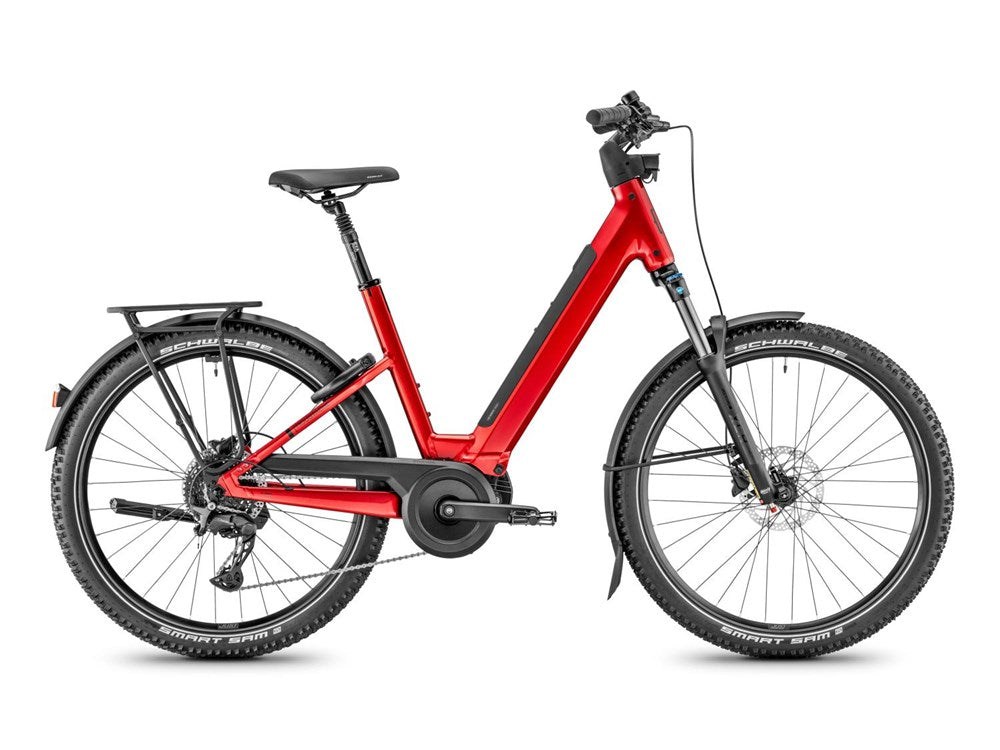

With its unique triple cavity frame design, The Moustache Xroad 4 doesn’t compromise on stiffness or weight unlike many other open frame designs flooding the bike industry. The result is a low step, light weight frame with perfect handling and a sleek silhouette to boot!

An 100mm travel fork and a suspension seatpost, the Moustache Xroad 4 is the epitome of versatility and comfort.

For many reasons the Moustache Xroad is New Zealand’s most sought after Rail Trail machine.

Now available with a dropper post!

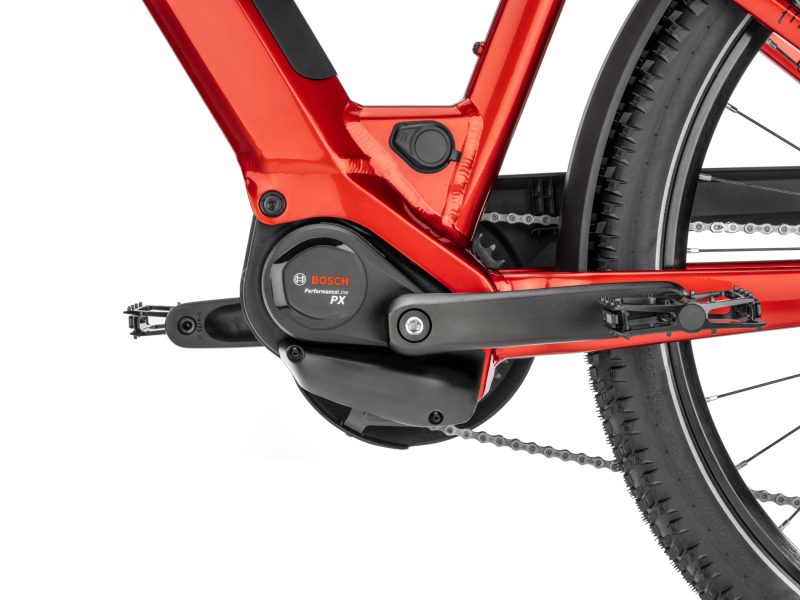

Bosch PX motor and battery – Power & Range

With the all new Bosch PX motor this is a completely updated platform. The PX motor delivers exceptionally smooth, progressive, natural and quiet assistance. With a huge 90Nm of torque this bike is built for the hills!

Equipped with the new lightweight Bosch 600Wh battery, the Moustache Xroad 4 will have no trouble spending a day on NZ’s fantastic network of rail trails. If you’re seeking an even bigger adventure the Xroad is also PowerMore (extra 250Wh) compatible.

Specs

Frame Xroad Open, 6061 T4-T6 alloy, hydroformed with triple cavity construction, integrated Bosch PowerTube battery, internal cable routing

Fork SR Suntour XCR 34, 120mm travel, lockout

Motor Bosch Performance Line PX, Smart System, 90Nm, 32 km/h assist

Battery Bosch PowerTube 600Wh

Charger Bosch 4Ah

Display / Remote Bosch Purion 200

Drivetrain Shimano CUES 10-speed

Shifter Shimano CUES SL-U6000-10R

Rear Derailleur Shimano CUES RD-U6020

Cassette Shimano CS-LG300 11-39T

Chain Shimano CN-LG500

Chainring 38T narrow-wide

Crankset Stronglight alloy, 170mm

Brakes Shimano MT200 hydraulic disc

Rotors Shimano 180mm front and rear

Wheelset 27.5” alloy rims, 32H, 27mm internal width

Front Hub Shimano 15x110mm thru axle

Rear Hub Shimano QR

Tyres Schwalbe Smart Sam 27.5 x 2.6 / 2.35

Cockpit Moustache alloy handlebar 660mm with 30° backsweep

Stem Moustache adjustable 110mm

Grips SB3 ergonomic

Headset Acros AZF-699, sealed, internal routing, blocklock

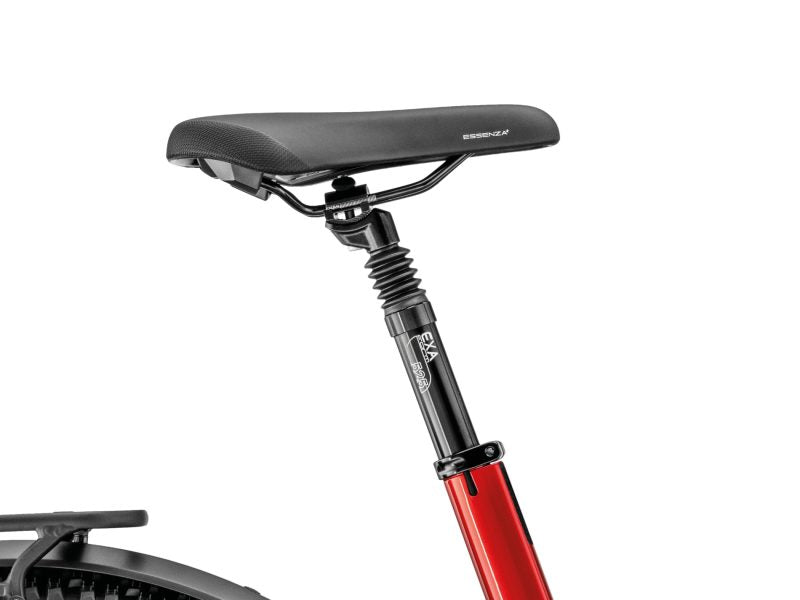

Seatpost Dropper, 31.6mm, 125mm travel

Saddle Selle Royal Essenza Moderate

Seat Clamp Moustache alloy 34.9mm

Lights AXA NXT 80 lux front, Spanninga Presto2Guard rear, powered by main battery

Carrier Moustache alloy rack with QL3 fixation and MIK HD platform

Mudguards Moustache alloy, double wall

Kickstand Moustache adjustable

Lock ABUS 4650SL, keyed alike with battery

Bell Spanninga Minibell

Pedals Alloy platform with reflectors

Max System Weight (GVWR) 160kg

Weight 26.2kg

Range Up to 144km (ideal conditions)

Size L

Colour Metallic deep red glossy

Warranty 5 years frame and fork, 2 years Bosch motor and battery
