Description

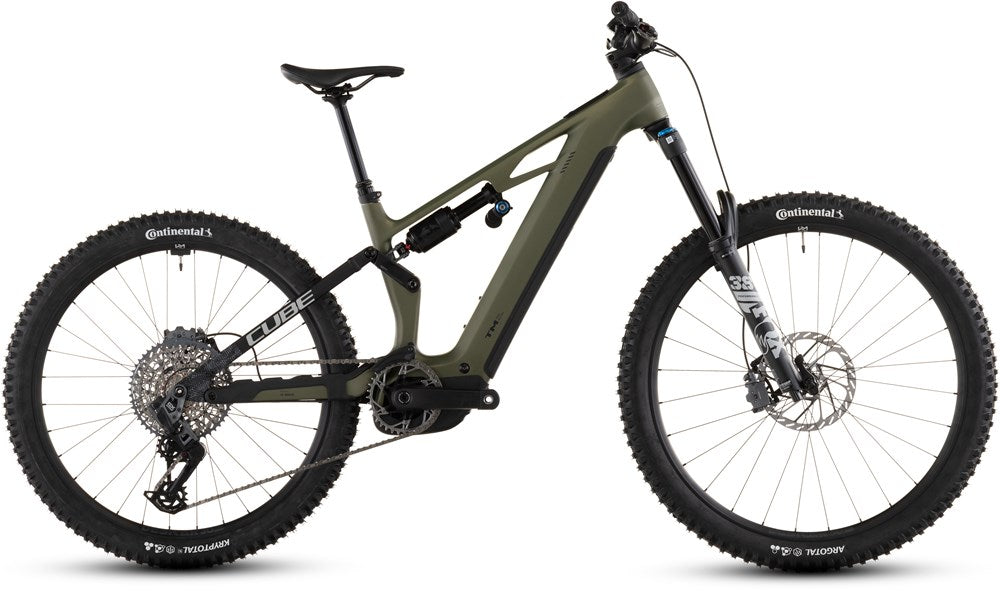

In keeping with CUBE Trail Motion tradition, the Stereo Hybrid ONE77 HPC TM is something rather special. For starters, we fed the power of the Bosch CX drive and 800Wh PowerTube battery through Sram's GX Eagle Transmission 1x12 gears with an ACID carbon crank, for effortless ratio selection and incredible electronic precision – and the Kiox 400C display shows you exactly what's going on. Next, we chose a Fox Float 38 Performance fork and paired it with a Float X2 Performance shock. Together, they provide 170mm of travel – with loads of adjustment – to help keep the rubber side down. Speaking of which, the mullet Newmen Beskar 30 wheelset is shod with Continental's grippy Argotal and Kryptotal 2.4in tyres. Which is a good thing, because all that traction helps the powerful Sram Maven Bronze hydraulic disc brakes do their job. Combined with a remote dropper seatpost, it's everything you need to pick a fight with gravity and come out on top.

The Stereo Hybrid ONE77 HPC frame – with 170mm travel front and rear and a mullet wheel setup with 29in front and 27.5in rear – is all you need for big days out on big mountain trails. But, as with all CUBE designs, the devil is in the detail. So, for example, we added Integrated Cable Routing for super-clean looks, and then threw in an angle-adjustable headset so that you can tweak the handling to your taste. The 800Wh PowerTube battery sits unobtrusively in the carbon down tube, just above the Bosch CX drive. A UDH dropout on the aluminium rear triangle is tough and future-proof, and we also added a Direct Mount chain guide to keep you driving forwards even when the going gets rough.

Specifications

FRAME

Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle, Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

SUSPENSION

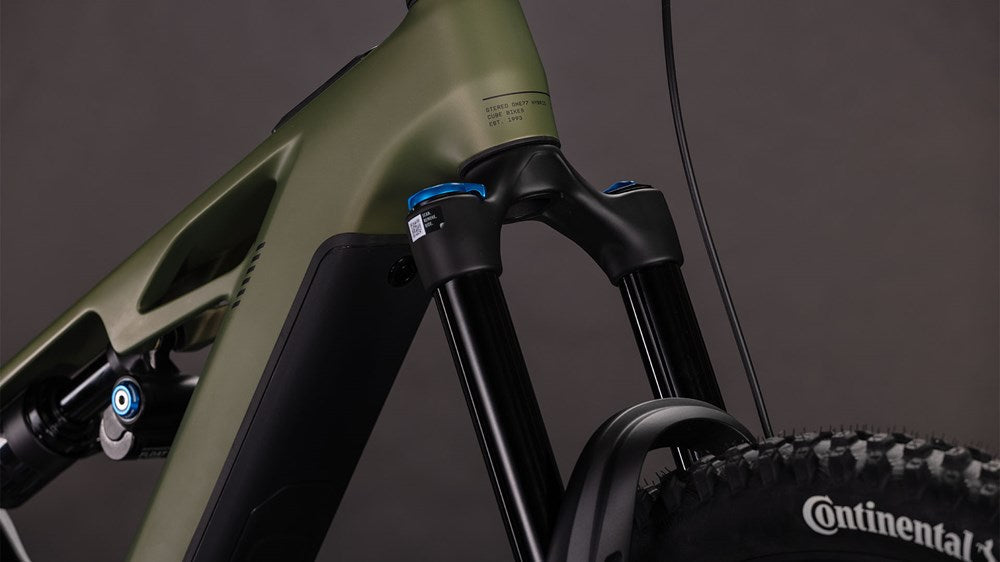

Fork: Fox 38 Float Performance GRIP, Tapered, 15x110mm, E-Bike Optimized, 170mm

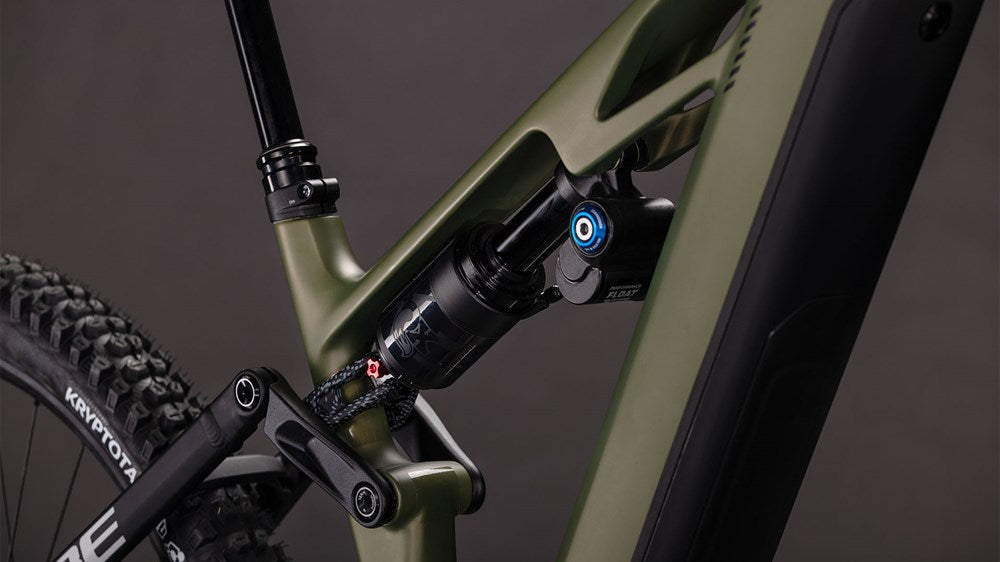

Rear Shock: Fox Float X2 Performance, 230x65mm, Adjustable HSC/LSC/LSR w/ 2-Pos. Lever

Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm

Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

E-BIKE SYSTEM

Drive Unit: Bosch Drive Unit Performance Line CX max. 100Nm (BDU38), 32kph

Battery: Bosch PowerTube 800

Charger: Bosch 4A

Display: Bosch Mini Remote

COCKPIT

Stem: CUBE Performance Stem E-MTB 35, FPI-Link

Handlebar: CUBE Rise Trail Bar 35

Grips: ACID Disrupt, Soft Compound

DRIVETRAIN & BRAKES

Rear Derailleur: Sram GX Eagle AXS™ Transmission, 12-Speed, Electronic Shifting System

Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

Shifters: Sram AXS™ Pod Controller

Brake System: Sram Maven Bronze, Hydr. Disc Brake (200/200)

Crankset: ACID MTB Hybrid Carbon, 36T

Cassette: Sram XS-1275, 10-52T

Chain: Sram GX Eagle™ Transmission

WHEELS

Wheelset: Newmen Beskar 30 base/strong, 28/32 Spokes, 15x110mm/12x148mm, Tubeless Ready

Front Tyre: Conti Argotal, Enduro Soft, Tubeless Ready, 2.4

Rear Tyre: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

FINISHING KIT

Saddle: ACID Venec EMTB Trail 140

Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

Pedals: ACID PP MTB

WEIGHT & MISC

Weight: 24,6 kg

Maximum System Weight: 160 kg

Maximum Rider Weight: 125 kg

Colour: reedgreen´n´matrix
