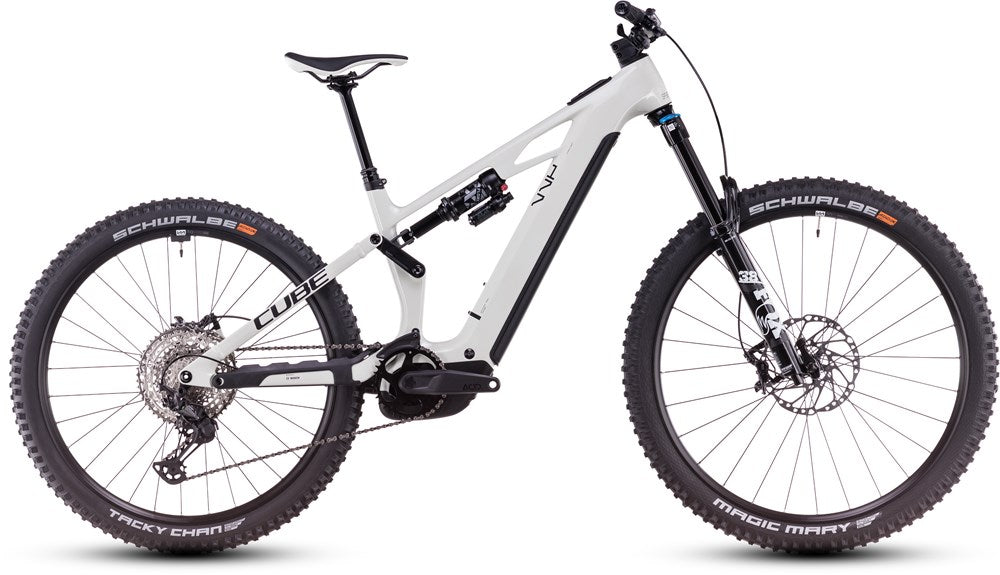

Challenging trails need a suspension setup to match, which is why we gave the Stereo Hybrid ONE77 HPC SLX a Fox Float 38 Rhythm Grip fork and Float X Performance shock. Together, they deliver 170mm of rock-swallowing travel front and rear, with loads of adjustment so you can get it dialled. The Bosch CX drive and PowerTube battery give your pedalling an unobtrusive but very effective boost, via Shimano's legendary XT 1x12 gears. Meanwhile, the mullet Newmen Performance 30 wheelset – shod with Schwalbe Magic Mary and Tacky Tan 2.4in tyres – is held in check by Shimano's powerful, progressive XT hydraulic disc brakes. Add it all up and, with a remote dropper seatpost too, it's the perfect formula for big mountain fun.

Specs

FRAME

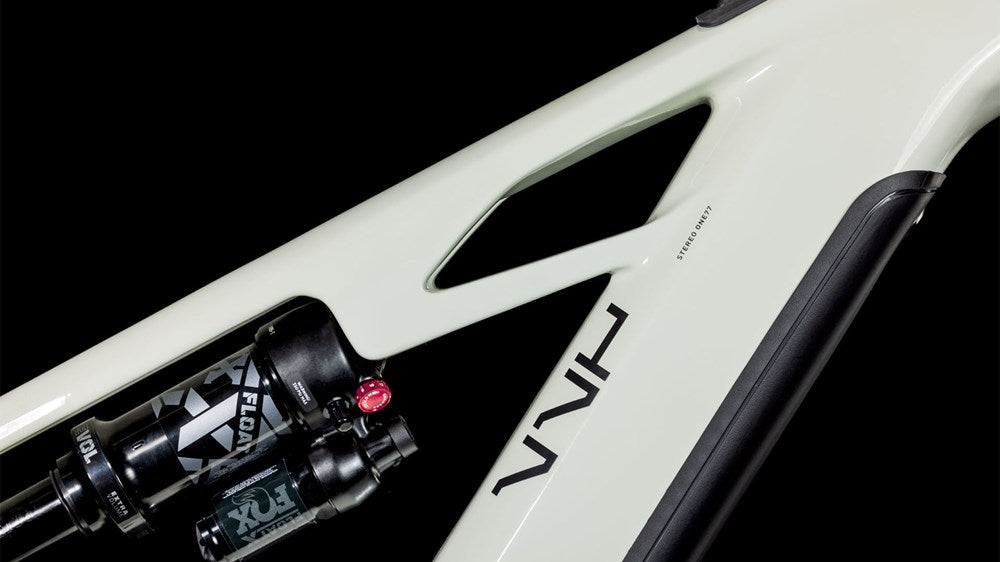

Material: C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle
Features: Efficient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing

SIZE

Available Sizes: S, M, L, XL

SUSPENSION

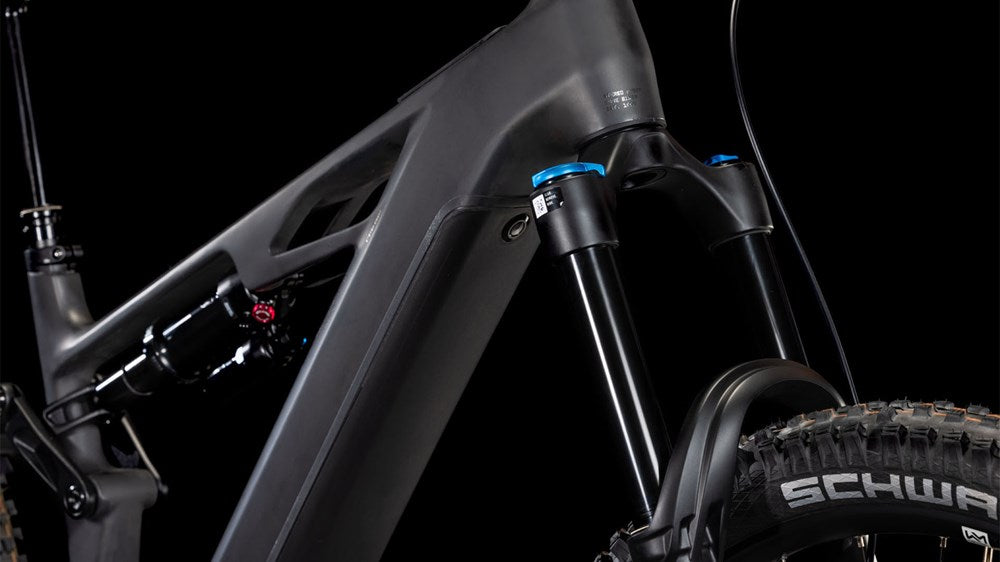

Fork: Fox 38 Float Rhythm, 2-Position Sweep-Adjust GRIP Damper, Tapered, 15x110mm, E-Bike Optimized, 170mm
Rear Shock: Fox Float X Performance, 230x65mm, Adjustable LSR w/ 2-Pos. Lever
Bearings: Front: 30x8mm, Rear: DU-Bushing 12.7mm
Headset: ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment, X-Connect Interface

E-BIKE SYSTEM

Drive Unit: Bosch Drive Unit Performance Line CX, Smart System, Gen 5, 120nm max
Battery: Bosch PowerTube 800
Charger: Bosch 4A
Display: Bosch System Control incl. Mini Remote

COCKPIT

Stem: CUBE Performance Stem E-MTB 35, FPI-Link
Handlebar: CUBE Rise Trail Bar 35
Grips: ACID Disrupt, Soft Compound

DRIVETRAIN & BRAKES

Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Chain Guide: Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate
Shifters: Shimano XT SL-M8100-IR, Direct Attach
Brake System: Shimano XT BR-M8120, Hydr. Disc Brake (203/203)
Crankset: ACID MTB Hybrid Pro, 36T
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12

WHEELS

Rims: Newmen Performance 30, 28/32 Spokes (Base/Strong), 15x110mm / 12x148mm, Tubeless Ready
Front Tyre: Schwalbe Magic Mary, Addix Soft, Super Trail, Kevlar, 2.4
Rear Tyre: Schwalbe Tacky Chan, Addix Soft, Super Gravity, Kevlar, 2.4

FINISHING KIT

Saddle: ACID Venec EMTB Trail 140
Seat Post: CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm
Seat Clamp: CUBE Semi-Integrated

WEIGHT & MISC

Weight: 24.6 kg
Maximum Rider Weight: 125 kg
