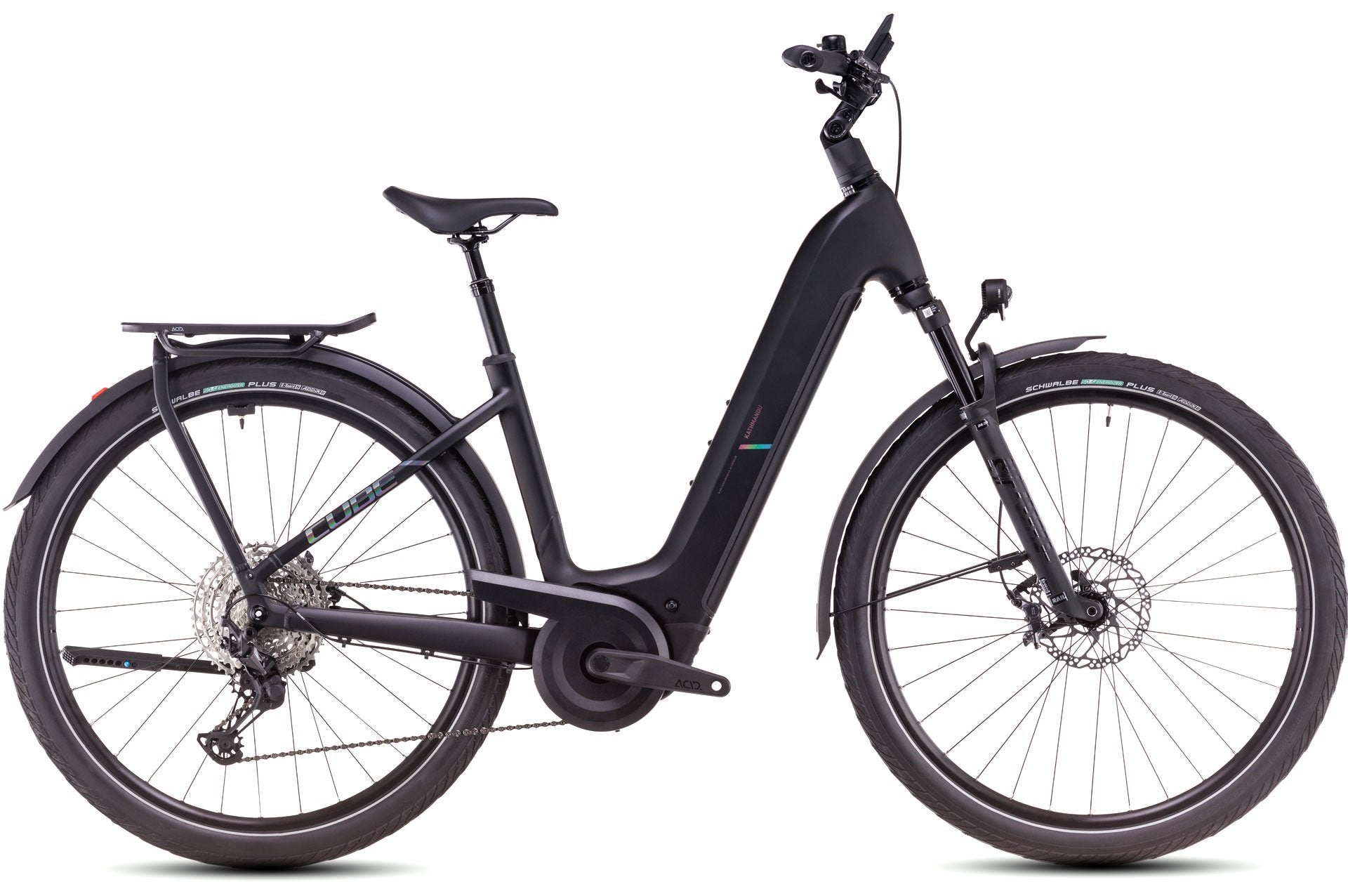

Whether you're riding across town or across countries, you'll need a bike that won't let you down. With its Bosch CX drive, high-capacity 800 Wh battery and dependable Shimano XT 1x12 gears, CUBE's Kathmandu Hybrid EXC 800 has everything you need.

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

Specs

FRAME

Material: Aluminium Superlite, Gravity Casting Technology
Features: Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

SIZE

Available Sizes: 50cm, 54cm, 58cm

SUSPENSION

Fork: Fox 34 Float Sport AWL, Tapered, 15x110mm, E-Bike Optimized, 100mm
Headset: ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

E-BIKE SYSTEM

Drive Unit: Bosch Drive Unit Performance Line CX, Smart System, 120nm max
Battery: Bosch PowerTube
Charger: Bosch 2A
Display: Bosch LED Remote, Bosch Kiox 500

COCKPIT

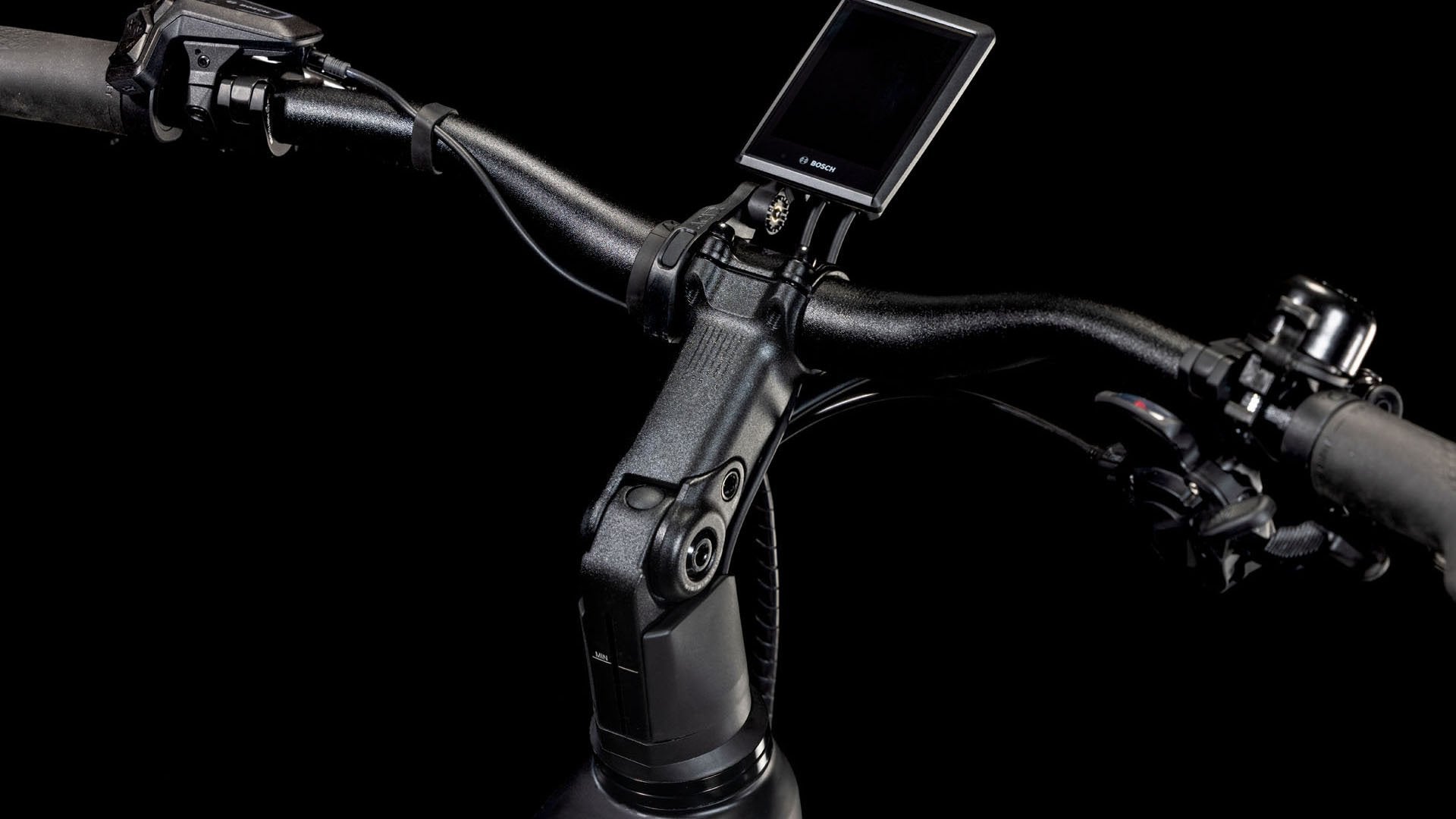

Stem: CUBE Comfort Stem Pro, 31.8mm, Adjustable
Handlebar: CUBE Comfort Trail Bar, 700mm
Grips: ACID Travel Comfort

DRIVETRAIN & BRAKES

Rear Derailleur: Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed
Shifters: Shimano Deore SL-M6100-IR, Direct Attach
Brake System: Shimano XT BR-M8120, Hydr. Disc Brake (180/180)
Crankset: ACID MTB Hybrid Pro
Cassette: Shimano Deore CS-M6100, 10-51T
Chain: KMC e12

WHEELS

Rims: CUBE EX25, 32H, Disc, Tubeless Ready
Front Hub: CUBE Engineered By Newmen, 15mm, Boost, Centerlock
Rear Hub: CUBE Engineered By Newmen, 12mm, Boost, Centerlock
Tyres: Schwalbe Energizer Plus, Performance, Green Guard, 55-622

FINISHING KIT

Saddle: ACID PP MTB ACID Sequence Pro Plus
Seat Post: CUBE Suspension Seatpost HD, 31.6mm
Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
Mudguards: ACID Mudguard
Rear Light: ACID Rear Light PRO-E, 12V, DC
Kickstand: ACID FM Pure Kickstand
Bell: ACID 65 Integrated Carrier 3.0 Easy Bell

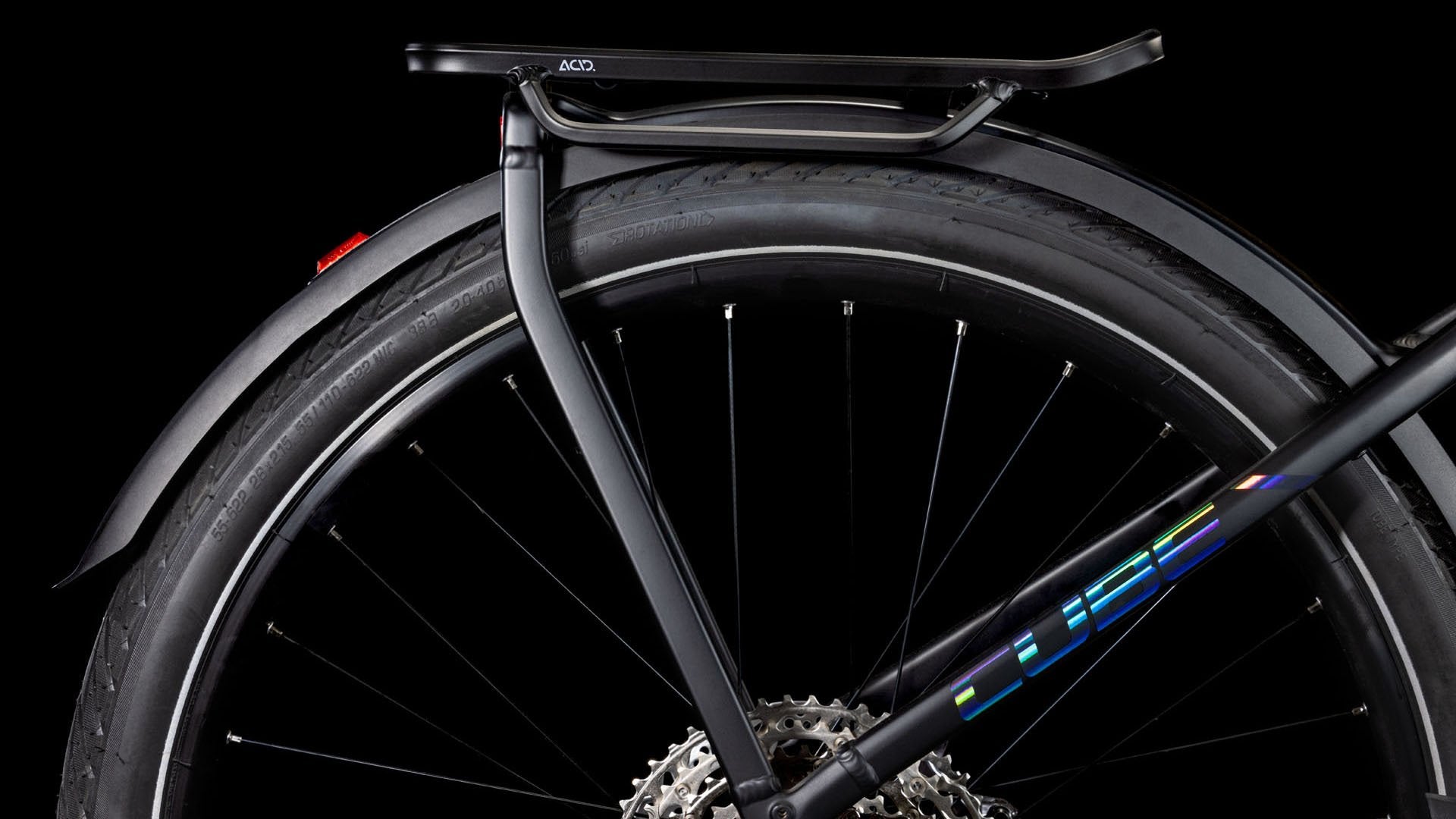

Carrier: ACID Integrated Carrier 3.0, CUBE Adapter Compatible

WEIGHT & MISC

Weight: 27.1 kg
Maximum Rider Weight: 110 kg
