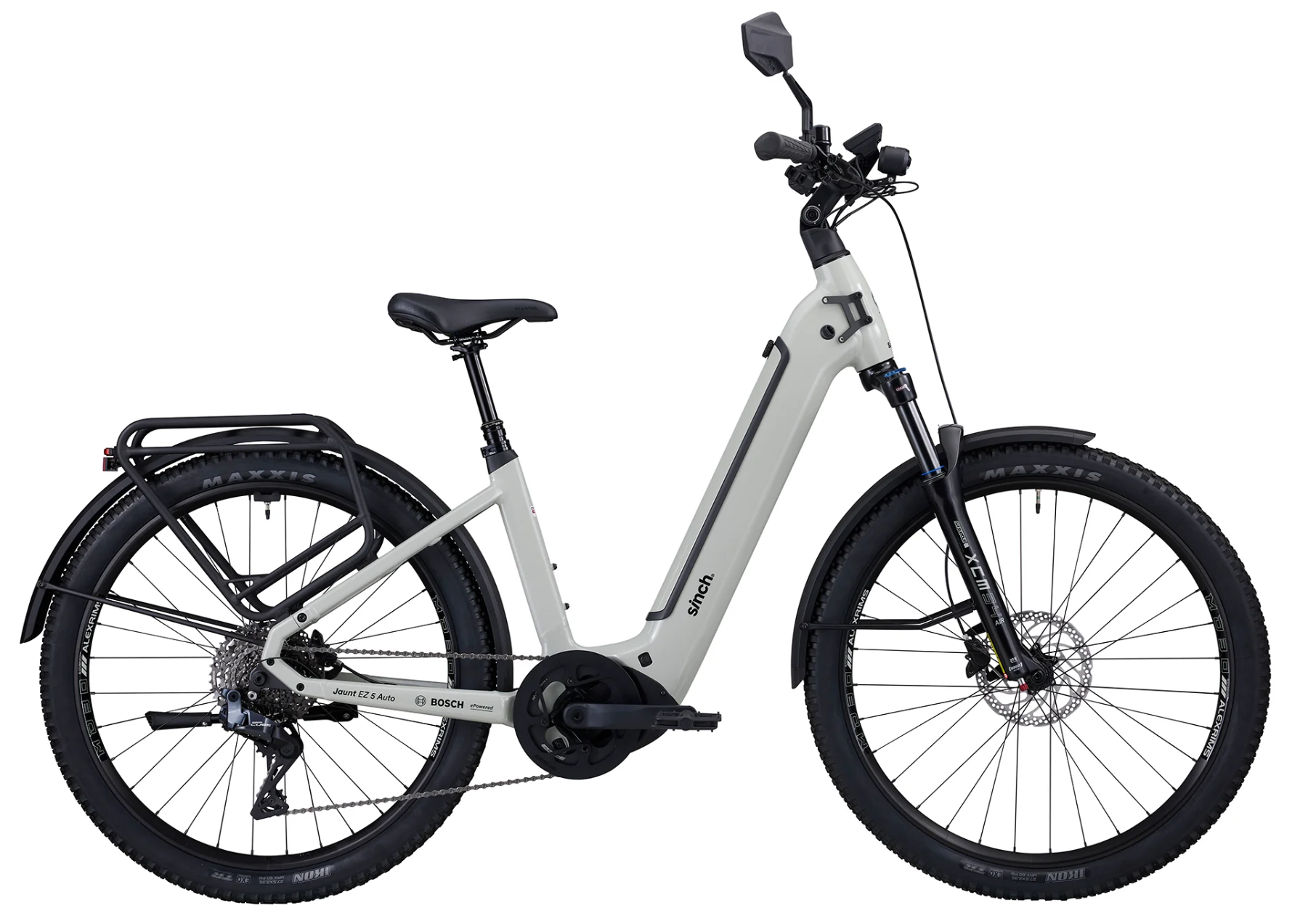

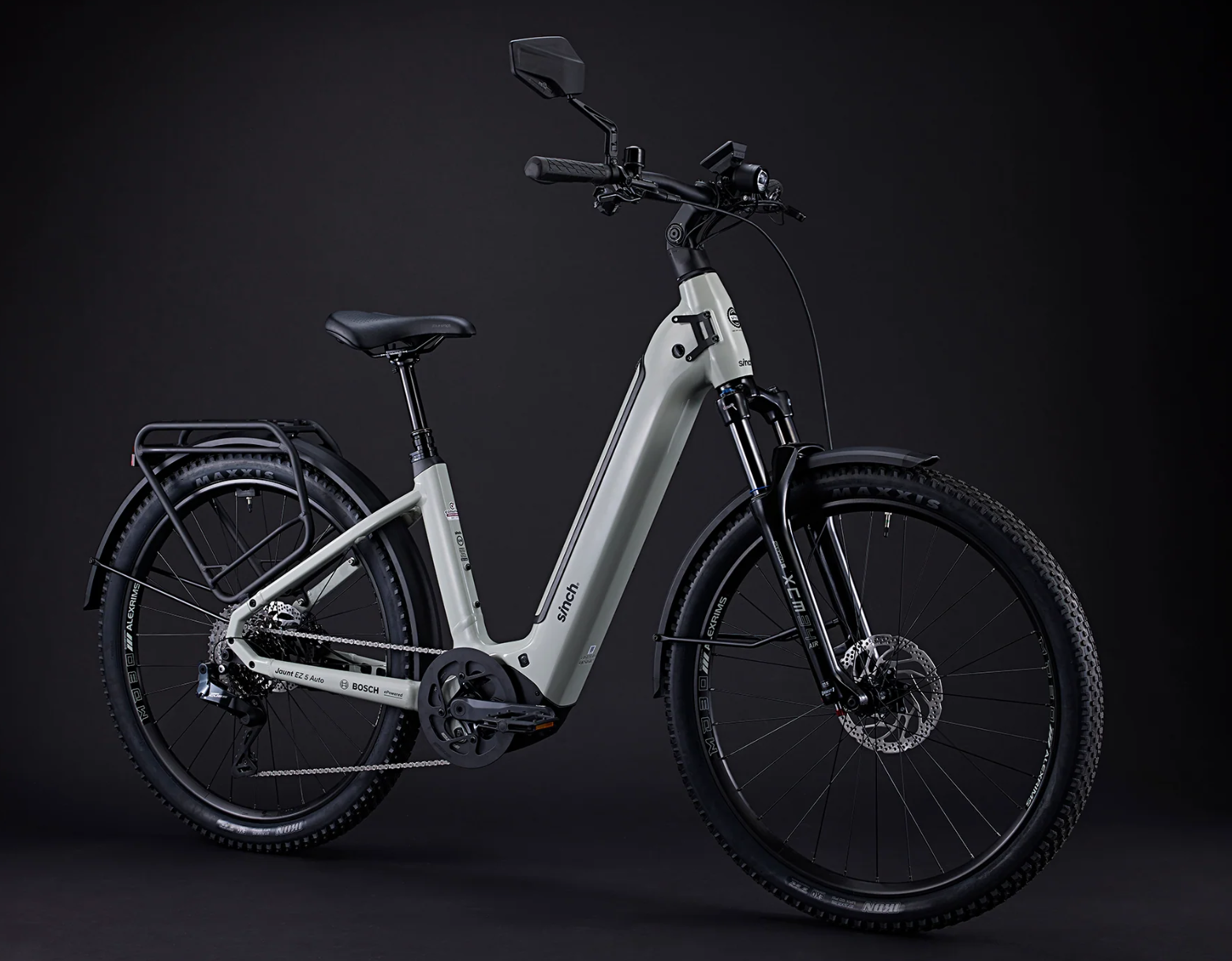

Meet the Jaunt EZ 5 Auto, the step-through e-bike built for everyday adventures.

Featuring Shimano CUES Di2 automatic shifting. Automatically changes gears for you so you can focus on the ride. Powered by the Bosch Performance Line Sport 90 Nm Smart System delivering assistance up to 45 km/hr paired with a 800Wh PowerTube battery expandable to 1,050Wh with PowerMore 250, the Jaunt EZ 5 Auto is ready for anything. A suspension dropper seatpost makes mounting simple, while premium suspension and intuitive controls keep every ride smooth, safe, and fun.

The Jaunt EZ 5 Auto makes every ride more enjoyable. Just hop on, pedal, and ride.

Dependable Performance

Battery

• Powered by the internal Bosch PowerTube 800Wh battery, expandable to 1050Wh with the optional PowerMore 250 (sold separately).

Powerful Pedal Assist

• Powerful Bosch Performance Line Sport Smart System 90Nm assisting you to 45km/hr.

Data Centre

• Compact, connected, and easy to use, the Purion 200 gives you all your ride data needed during your ride.

Dependable Drivetrain

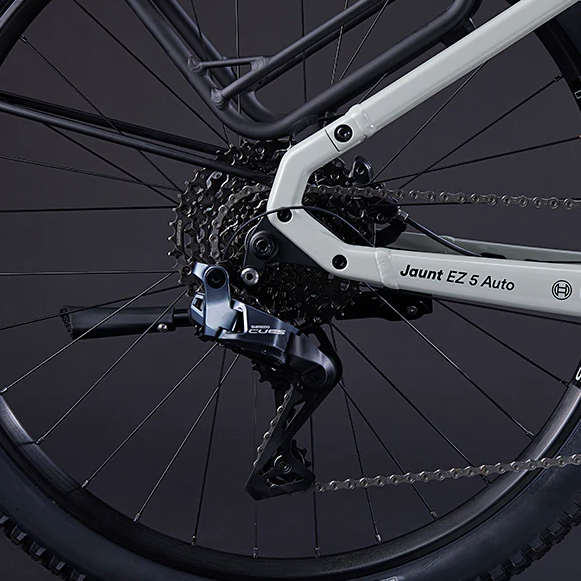

• Shimano Cues Di2 Automatic 10 speed LinkGlide components sets a new standard through Automatic shifting putting you in the right gear all the time.

Reliable Safety

Lighting Solutions

• Be seen and stay safe with built-in front and rear lighting solutions.

Effective Brakes

• Shimano hydraulic-disc brakes ensure effective and timely stops.

Safety Mirror

• Ride smarter and safer with the integrated rearview mirror, designed to increase visibility and awareness of your environment.

Proper Traction

• Ride with confidence on reliable Maxxis tires and enjoy a smooth, safe journey with plush suspension.

Unparalled Comfort

Smooth Ride

• 100mm of front air suspension travel is designed to make every ride comfortable.

Equipped Features

• Equipped with fully integrated powerful lighting solutions, alloy fenders and noise reduction kick stand.

All-round Comfort

• Every touch point including the suspension dropper seat post, saddle, handlebars and grips are designed with your comfort in mind.

Fingertip Control

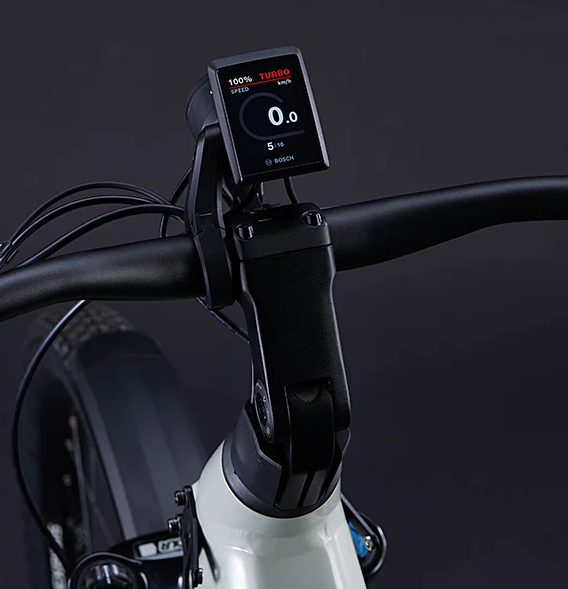

• The Bosch Kiox 300 and LED Remote deliver a clean, connected setup with an intuitive layout and bright display, keeping data clear and hands safely on the bars.

Frameset

Frame
6061 E-Bike Specific Step-through Aluminum Frame with Fully intergrated removable Down Tube battery and internal cables

Front Suspension
SR Suntour XCM34 AIR, 110x15mm boost thru axle, 100mm travel with low speed rebound adjust and lockout

Rear Suspension
N/A

Motor

Drive Unit
New Bosch Performance Line Sport BDU347Y 250watt, 90Nm, Max Power 700W, Max support 400%, 45km/hr with walk assist mode

Battery
New Bosch PowerTube, 800Wh

Display
Bosch Kiox 300

Controller Switch
Bosch LED Remote

Wheels

Hubs
Shimano TC500 Boost 110x15mm Thru axle 32H front, TC500 Boost 148x12mm Thru axle 32H rear

Rims
Alex MD30 Double Wall 27.5” 32H F/V

Tyres
Maxxis Ikon 27.5x2.35” Foldable, 60tpi, TR/EXO puncture protection

Drivetrain

Shifter
Shimano Di2 SW-EN605-R SEIS with Manual or Auto shift and free shift

Derailleur
Shimano Cues Auto Di2 RD-U8050 GS Shadow 10 Speed

Crankset
FSA Alloy with 42T Chainring and Chainguard

Cassette
Shimano Cassette LG300 LinkGlide 11-43T 10 Speed

Chain
Shimano CN-LG500 Link Glide

Pedals
Sinch Nylon platform

Components

Brakeset
Shimano MT200 Hydraulic disc, 180mm front/160mm rear rotors

Saddle
Sinch Comfort 197mm Gel Dual density

Seat post
Suspension AIR Adjust Dropper, S/M & M/L=100, XL=120mm travel, Internal routing, 31.6mm

Bar
Alloy Comfort, 30mm rise, 15° sweep, 700mm

Stem
Sinch Alloy Adjustable, 31.8mm

Headset
Integrated with internal cables

Grips
Sinch Comfort Gel Lock-on dual density

Accessories

Lights
Litemove SE 90 Lux Front, Spanninga Pimento Large Rear with sensor Brakelight function

Accessories
Alloy Fenders, MIK HD Rear Carrier 27kg load capacity, Noise reduction Kickstand, Range extender PowerMore 250 compatible, Multi-angle adjustable Mirror, Sinch accessory case

Sizes
S/M, M/L, XL=27.5”

Warranty
Lifetime on Hardtail Frames and 5 years on Rear suspension Frame Sinch Bikes - 2 years motor and battery. Other parts follow manufacturer warranty.

Product specifications may change without notice. Non-binding information.

Size :  Rider Height

S/M : 152-170cm

M/L : 168-182cm

XL : 178-196cm
